glazed-sheet-roll-forming-machine

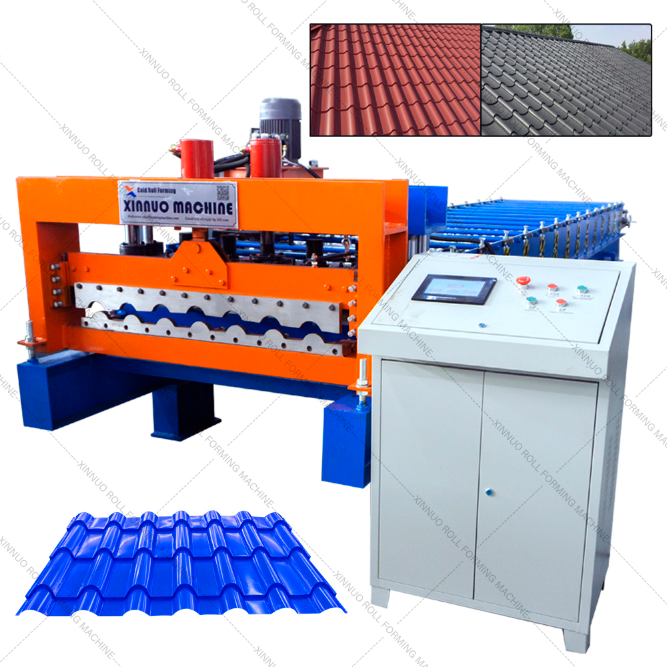

Machine display：

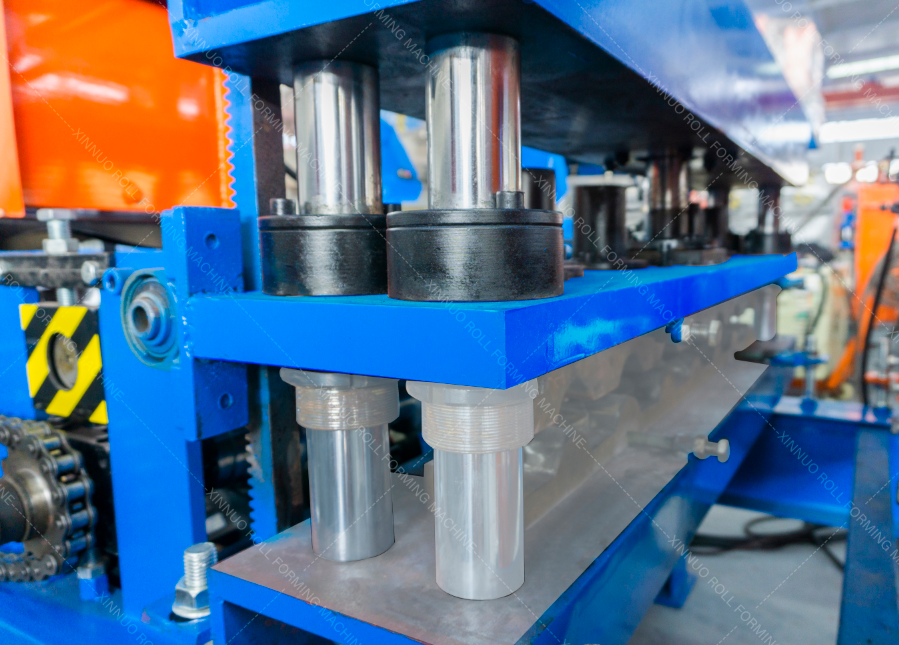

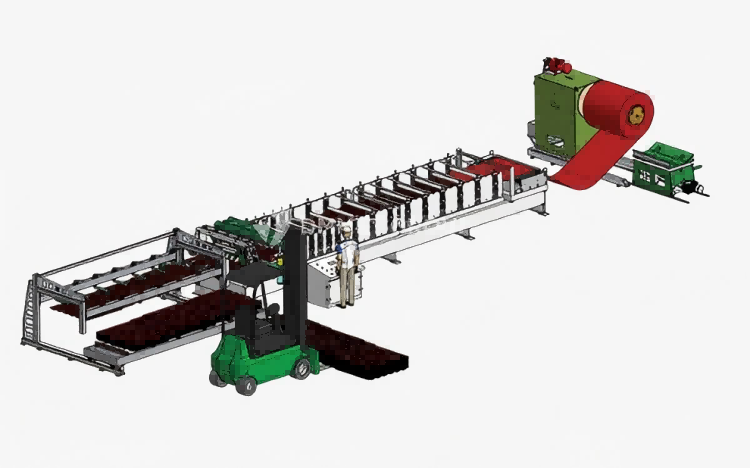

The glazed sheet roll forming machine is mainly composed of the following core parts:

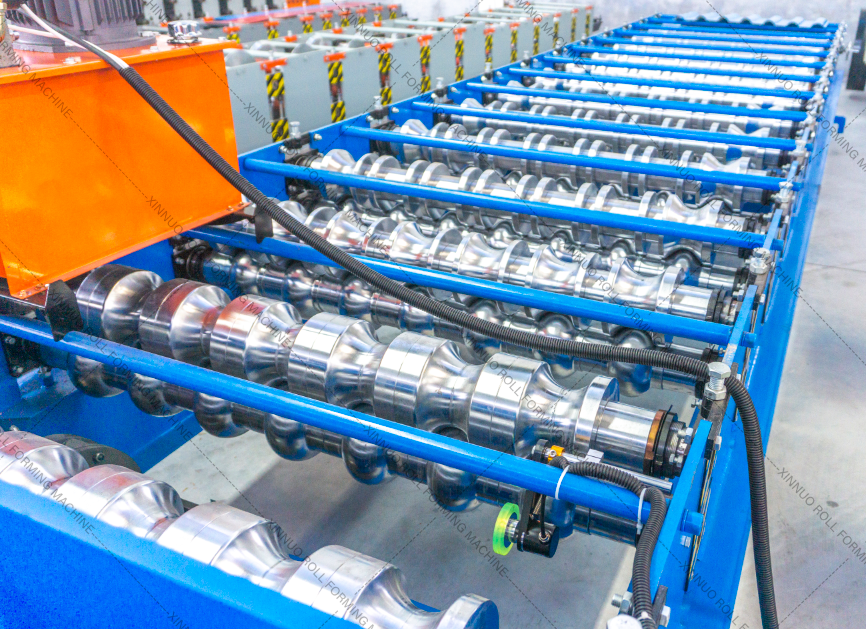

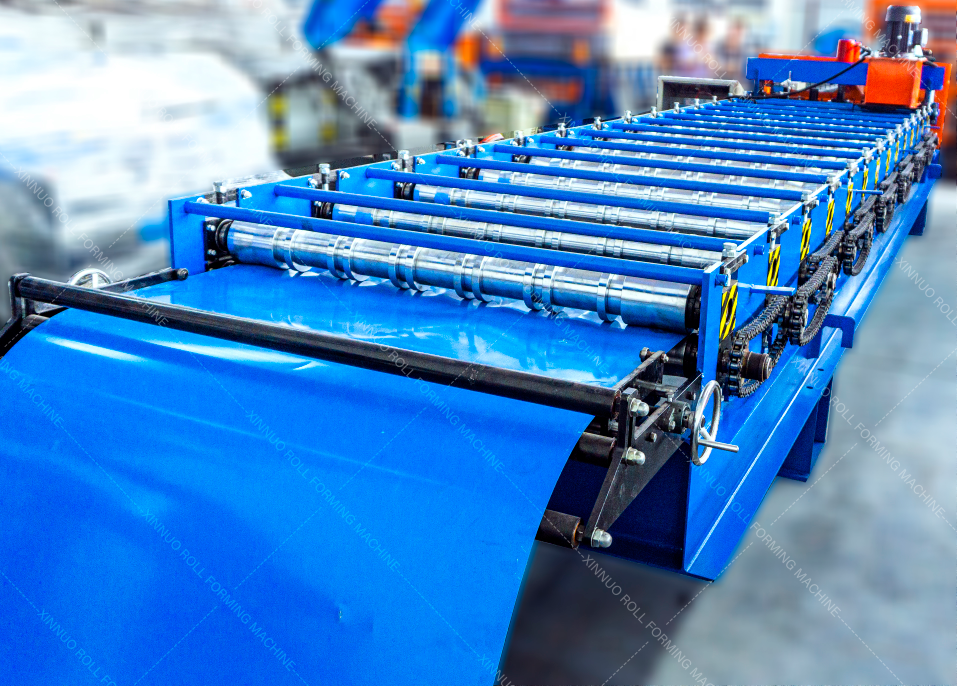

• Forming machine: responsible for pressing the metal coil into the required tile shape;

• Hydraulic station: provides power for the cutting system;

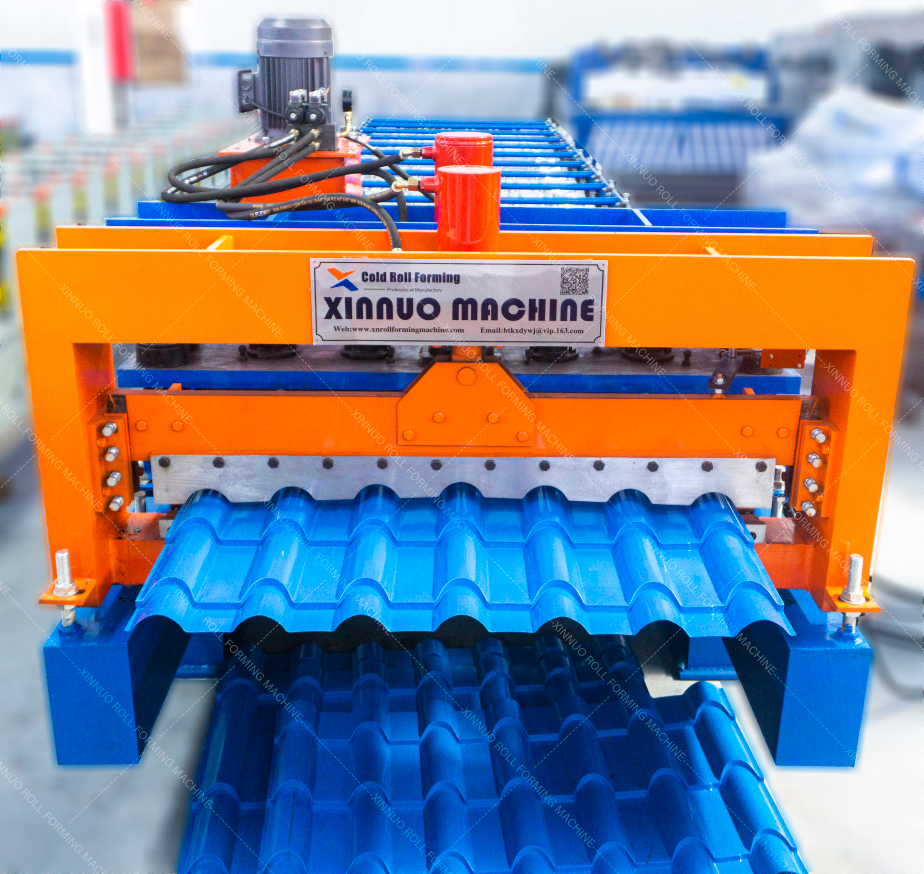

• Forming shear: automatically cuts according to the set length;

• Control system: adopts PLC control to achieve automatic operation and precise control.

Specifications:

1. Dimensions of the unloading rack: 860mm long × 1450mm wide × 1124mm high

2. Maximum speed of the forming machine: 10m/min

3. Thickness of the formed color steel plate: 0.5-0.6mm

4. Expanded width of the formed color steel plate: 1000mm

5. Width of the best effect of forming glazed tiles: 840mm

6. Wave height of formed glazed tiles: 28mm, deviation 28-0.3

7. Forming rack: 14 lanes

8. Dimensions of the forming rack: 8268mm long × 8268mm wide 1486mm×897mm high

9. Punching machine dimensions: 477mm long×1380mm wide×837mm high

10. Main motor power: 3.7KW

11. Roller material: 45# steel processed by CNC, polished, 0.05mm chrome plated on the surface

12. Roller shaft diameter: Φ70mm

13. Hydraulic oil pump motor: 5.5KW

14. Purchased inverter

15. Computer uses purchased PLC

16. Computer operation panel, text screen, supports multiple language customization
